MITRE ATT&CK Navigator

The ATT&CK Navigator is your visual map for tracking which attack techniques you've tested during an engagement. It's organized by the official ATT&CK framework — 14 tactics, hundreds of techniques, and sub-techniques.

Every profile you create gets its own ATT&CK Navigator, pre-loaded with the full technique library.

RTF Login Screen

Understanding the Layout​

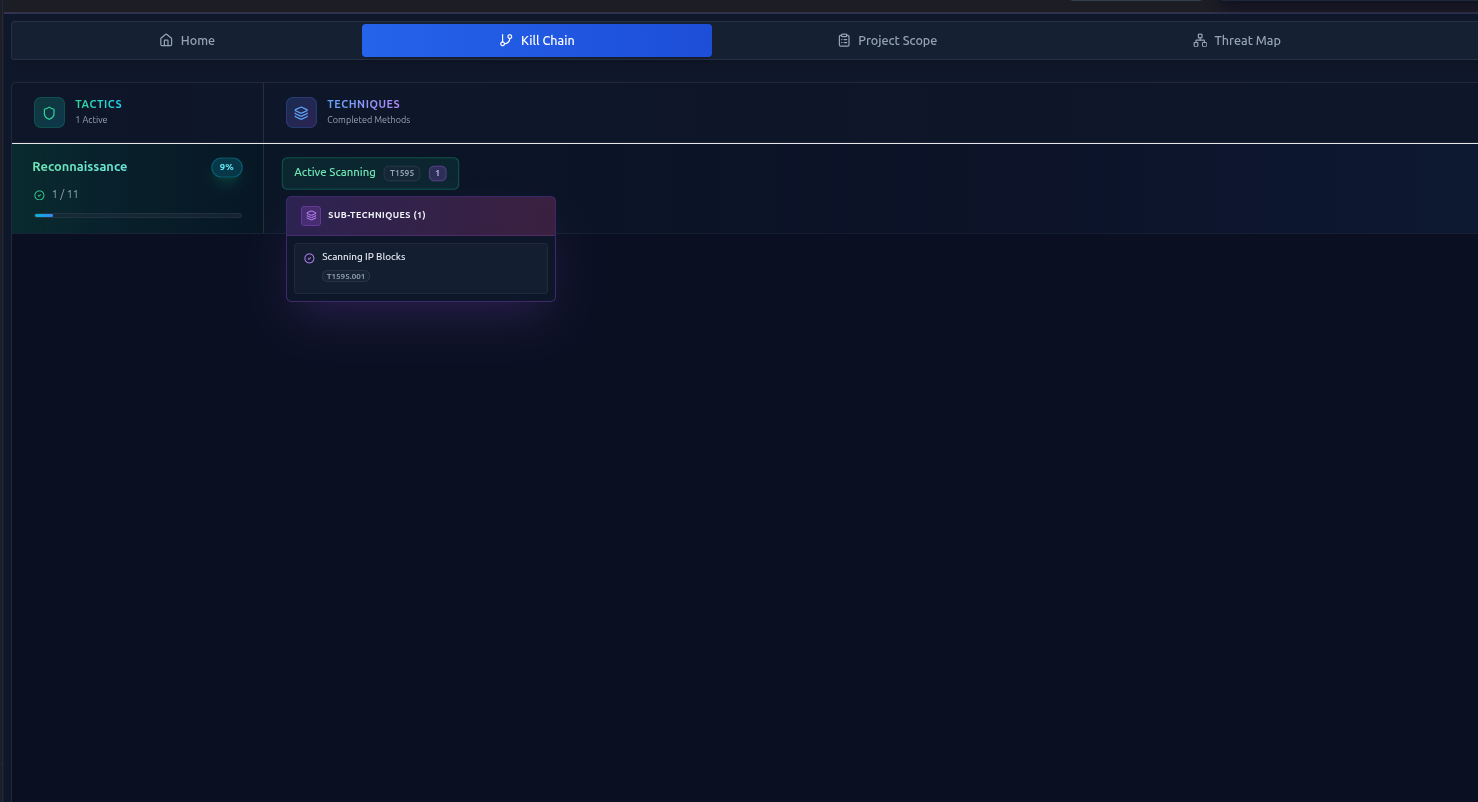

The navigator is organized into Tactics (columns) and Techniques (rows within each tactic):

Reconnaissance → Resource Development → Initial Access → Execution → ...
    │                   │                    │               │
    ├─ Active Scanning   ├─ Acquire Infra     ├─ Phishing     ├─ Command Scripts
    │   └─ IP Blocks     │   └─ Domains       │   └─ Spear    │
    ├─ Gather Info       ├─ Compromise Infra  ├─ Valid Accts  └─ ...
    └─ ...               └─ ...               └─ ...

Each technique card shows:

  • Technique name and ID (e.g., T1595)
  • Status — in progress, completed, or not started
  • Scope indicator — whether this technique is in scope
  • Priority level

Technique Statuses​

StatusMeaning
Not StartedTechnique hasn't been tested yet
In ProgressYou've started working on this technique
CompletedTesting for this technique is done
Auto-sync with Findings

You don't have to manually update the navigator for every finding. When you create a Finding and mark it as completed, the related technique is automatically marked as completed in the navigator. See Findings →.

Marking Techniques In Scope​

Techniques marked as In Scope are the ones relevant to your engagement. Only in-scope techniques are included in AI attack plan generation.

To mark techniques in scope manually:

  1. Click on a technique card
  2. Toggle In Scope on

Or, use AI Scope Suggestions to let AI do this for you based on your target description. See AI Scope Suggestions →.

Updating Technique Status​

Via Findings​

When you create a finding and link it to a technique, the navigator updates automatically:

  • Finding status = In Progress → technique = In Progress
  • Finding status = Completed → technique = Completed

This is the preferred approach because it keeps your findings and navigator in sync.

The Timeline View​

RTF Login Screen

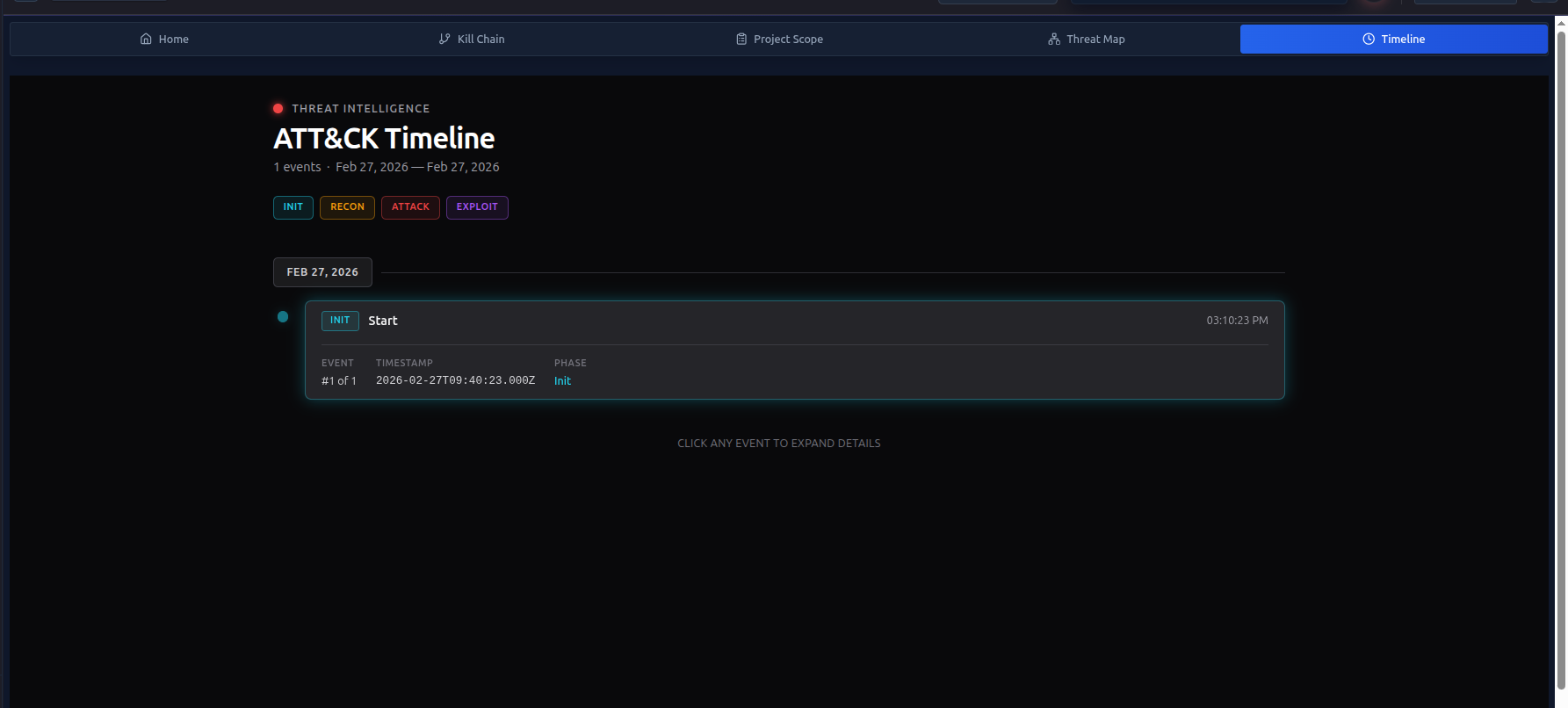

The navigator includes a Timeline panel that shows:

  • Start — when the engagement began
  • Each completed finding, in chronological order

This gives you a visual history of the engagement's progression.

Top Tactics Coverage​

RTF Login Screen

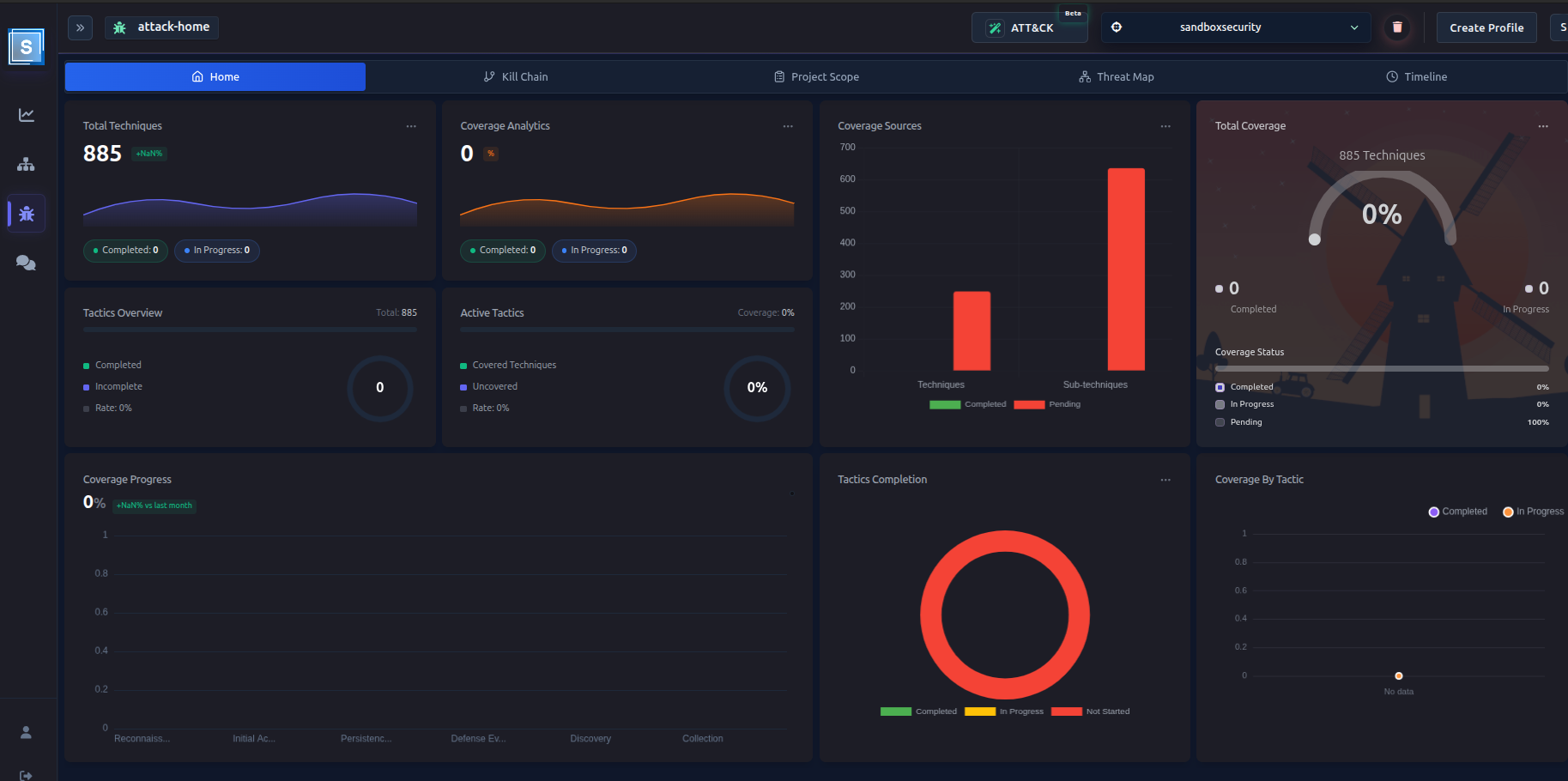

At the top of the navigator, you'll see a Top Tactics Coverage panel showing:

  • Which tactics have the most completed techniques
  • The most recently completed items in each tactic

This helps you quickly see where you've been most active and where gaps remain.

Cascade Logic — How Status Propagates​

RTF uses a smart cascade system so you don't have to update multiple levels manually:

  • When a sub-technique is completed → the parent technique is marked completed
  • When a technique is completed → the tactic is marked completed (if all techniques done)
  • When you delete a completed finding → the status reverts only if no other completed findings exist for that path

This prevents accidental status resets when you have multiple findings per technique.

Searching and Filtering​

Use the search bar at the top of the navigator to:

  • Search by technique name or ID (e.g., "T1059" or "PowerShell")
  • Filter by status (show only in-progress, only completed, etc.)
  • Filter by scope (show only in-scope techniques)

Exporting Navigator Data​

You can export your current navigator state for reporting or sharing. The export includes technique names, statuses, and scope settings in a structured format.
