C2 Infrastructure Mapping

The C2 Infrastructure section lets you map out your command-and-control setup during an engagement. You can visually track your beacons, relay nodes, redirectors, and their relationships in a hierarchical tree.

---

What Is C2 Infrastructure Mapping?

During a red team engagement, you deploy infrastructure to control compromised machines:

• Listeners / Team servers — your origin C2 nodes
• Redirectors — intermediate nodes that forward traffic
• Beacons / Implants — the compromised machines calling back

RTF lets you document all of this in a structured, visual way — so your team always knows what's deployed and where.

---

C2 Frameworks

RTF comes pre-configured with the most common C2 frameworks:

Framework	Type
Cobalt Strike	Commercial
Havoc	Open source
Sliver	Open source
Empire	Open source
Metasploit	Open source

You can also add custom frameworks for any other C2 tool you use.

---

Adding a C2 Framework

Before adding nodes, you need to define which framework you're using:

1. Go to C2 Infrastructure → Frameworks

2. Click Add Framework

3. Fill in:

   Field	Description
   Name	Framework name (e.g., "Cobalt Strike")
   Description	Optional notes
   Communication Channels	e.g., HTTPS, DNS, SMB
   Beacon Name	What you call your implants (e.g., "Beacon", "Agent", "Session")

4. Click Save

---

Adding Nodes (Beacons / Redirectors)

A node represents any machine in your C2 chain — whether it's a redirector, a listener, or a compromised host.

To add a node:

1. Go to C2 Infrastructure → Nodes

2. Click Add Node

3. Fill in the details:

   Field	Required	Description
   IP Address	Yes	The node's IP
   OS	Yes	Windows, Linux, macOS, or Unknown
   Channel	Yes	Communication channel (HTTPS, DNS, etc.)
   TTP	Yes	The MITRE technique this node relates to
   Framework	Yes	Which C2 framework this node belongs to
   Is Origin	—	Toggle on if this is a team server / listener
   Parent IP	No	The node this one connects to (for redirectors and beacons)
   Description	No	Additional notes
   Tags	No	Labels like "redirector", "beacon", "pivot"

4. Click Save

---

Understanding the Node Hierarchy

Nodes are organized in a tree structure:

Origin Node (Team Server)
└─ Redirector
    ├─ Beacon (Compromised Host A)
    └─ Beacon (Compromised Host B)
        └─ Pivot Node (deeper in network)

• Depth 0 — Origin (your team server / listener)
• Depth 1 — Nodes connected directly to origin (redirectors, direct beacons)
• Depth 2+ — Deeper nodes (pivots, beacons through redirectors)

---

Viewing the Infrastructure Tree

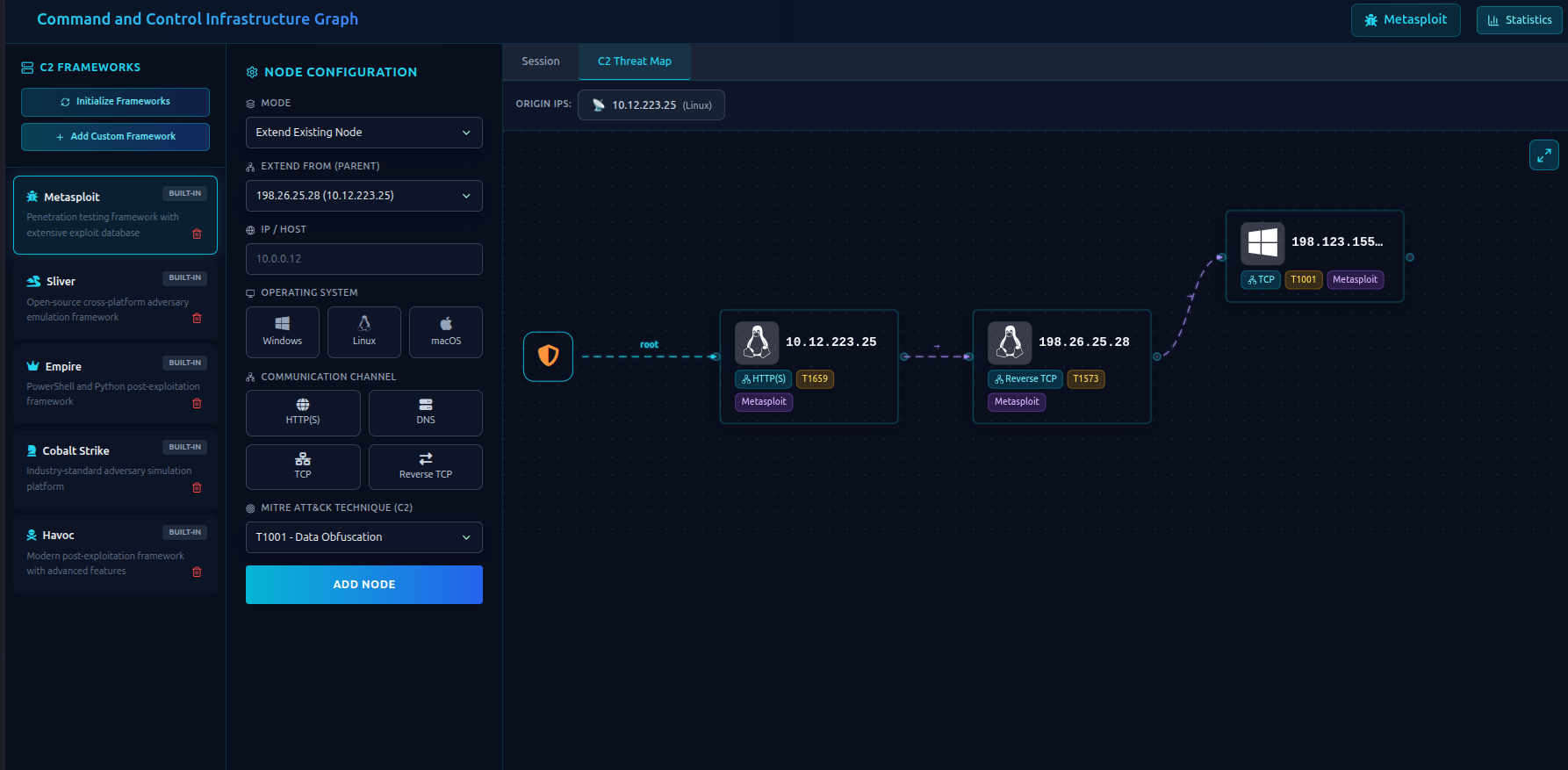

Click Infrastructure Tree to see your full C2 setup visualized as an interactive tree diagram. You can:

• See which machines are active in your chain
• Track communication paths
• Identify pivot points

---

Infrastructure Statistics

The Statistics view shows:

• Total frameworks deployed
• Total number of nodes
• Number of origin nodes (team servers)
• Breakdown by framework

---

Organizing by Engagement

C2 nodes are tied to your engagement (profile) and optionally to a subprofile. This means:

• Each engagement has its own isolated C2 map
• You can filter nodes by subprofile if you have segmented targets

---

Tips

• Add nodes as you deploy them — don't try to reconstruct the map at the end
• Use Tags to label node roles (redirector, beacon, pivot, exfil)
• Set Is Origin only on your actual team servers — this keeps the tree structure clean
• Document the channel accurately — it helps in reporting (e.g., "HTTPS beacons over port 443 through AWS redirector")

---

Next Steps

• Analytics Dashboard → — C2 infrastructure stats appear in the dashboard
• Findings → — link findings to the techniques used through your C2
